Brand Name : JAC
Model Number : CPD20
Certification : CE,ISO9001,ISO14001,OHSAS18001
Place of Origin : CHINA
MOQ : 1UNIT
Price : negotiable
Payment Terms : L/C, T/T
Supply Ability : 1000UNITS/Month
Delivery Time : 25 working days
Load capacity : 2000KG
Warranty : One year
Power : Electricity
Color : Red
Controller : Curtis or Imotion
Lift height : 3m-6m
2 Ton Lifting Capacity Battery forklift , AC Driving System , CPD20 , Red Color
Features:
Parameters:
Model | Unit | CPD20J | |||
1 | Load Capacity | kg | 2000 | ||
2 | Load Center | mm | 500 | ||
3 | Mast Lifting Height | mm | 3000 | ||
4 | Mast Free Lifting | mm | 155 | ||
5 | Fork | mm | 1070×122×40 | ||
6 | Mast Tilt( FR/RR) | . | 6/12 | ||
7 | Turning Radius | mm | 2200 | ||
8 | Ground Clearance | mm | 110 | ||
9 | Height of Overhand Guard | mm | 990 | ||
10 | Overhang (FR) | mm | 466 | ||
Max.Speed(load) | km/h | 12 | |||
12 | Max.Lifting Speed(load) | mm/s | 220(BC) | 280(AC) | |
13 | Max. Gradeability | % | 15 | 15 | |
14 | Overall length(No fork) | mm | 2435 | ||
15 | Overall Width | mm | 1163 | ||
16 | Wheelbase | mm | 1520 | ||
17 | Tread | Fron/Rear | mm | 973/960 | |
18 | Service Weight | kg | 3850 | ||
19 | Battery | Voltage/Capacity | V/Ah | 48/600 | |
20 | Motor | Traveling | KW | 11.1 | |
21 | Lifting | KW | 8.6 | 12 | |
22 | Way of Control | BC | AC | ||
23 | Operating Pressure | Mpa | 18.5 | ||
24 | Max.Drawbar Pull | KN | 17 |
![]() |

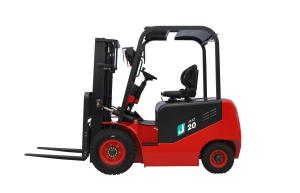

2 Ton Lifting Capacity Electric Battery Forklift Truck With Comfortable Seating Images |
