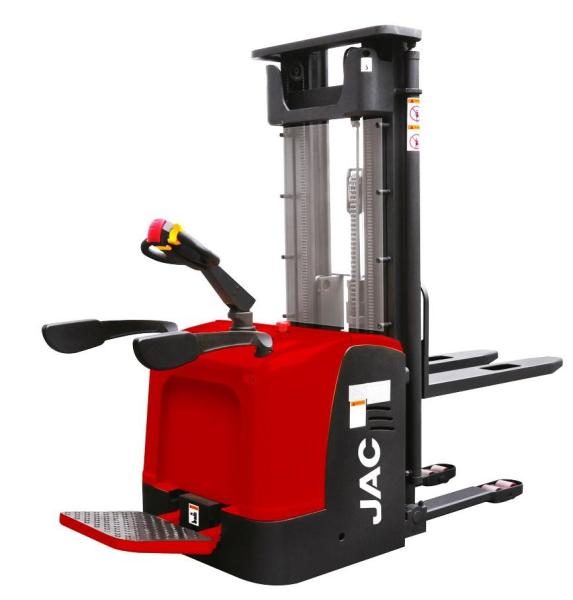

Electric Ride On Pallet Stacker , 1.5Ton Lifing Capacity , Narrow Aisle Warehouse Forklift , Red / Yellow Color
1. The electric stacker adopts AC motor. So the troublesome replacement of carbon brush is not required.
2. The multi-function display instrument shows the electric quantity, malfunction, accumulative working hours, and the operating speed.
3. The replacement and maintenance of the storage battery can be completed easily, since the side gate and the storage battery cover of the AC electric stacker can be fully opened, and the storage battery can be pulled out sideways.
4. Our electric stacker is installed with anti-vibration device to reduce the noise during operation.
5. For high safety, the handlebar of the material stacking device is designed with emergency reverse button.
Parameters:
| Model | | CDDR15-Ⅰ | CDDR15-Ⅱ |
| Load capacity/rated load | Q(kg) | 1500 | 1500 |
| Load centre distance | c(mm) | 600 | 600 |
| Load distance,centre of drive axle to fork | x(mm) | 672 | 672 |
| Fork height, lowered | h13(mm) | 85 | 85 |
| Tyre size, front | mm | φ250×70 | φ250×70 |
| Tyre size, rear | mm | φ80×84 | φ80×84 |
| Additional wheels(dimensions) | mm | φ150×60 | φ150×60 |
| Wheels,number front rear(x=driven wheels) | | 1x+2/4 | 1x+2/4 |
| Height,mast lowered | h1(mm) | 1735/1985/2135/2235/2050/2210/2410 | 1735/1985/2135/2235/2050/2210/2410 |
| Free lift(option 2500~3500mm) | h2(mm) | 1300/1550/1700/1800/1570/1740/1940 | 1300/1550/1700/1800/1570/1740/1940 |
| Max. Lift height | h3(mm) | 2500/3000/3300/3500/4500/5000/5600 | 2500/3000/3300/3500/4500/5000/5600 |
| Height,mast extended | h4(mm) | 2955/3455/3755/3955/5030/5510/6110 | 2955/3455/3755/3955/5030/5510/6110 |
| Height of tiller in drive position min./max. | h14(mm) | 1150/1450 | 1150/1450 |
| Overall length | l1(mm) | 2020/2100 | 2020/2100 |
| Length to face of forks | l2(mm) | 950 | 950 |
| Overall width | b1(mm) | 850 | 850 |
| Fork dimensions | s/e/l(mm) | 60/180/1070(1150) | 60/180/1070(1150) |
| Width overall forks | b5(mm) | 570/695 | 570/695 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2515 | 2515 |
| Turning radius | Wa(mm) | 1655 | 1655 |
| Travel speed,laden/unladen | Km/h | 6.5/6.7 | 6.5/6.7 |
| Lift speed,laden/unladen | m/s | 0-0.12/0-0.19 | 0.11/0.14 |
| Lowering speed,laden/unladen | m/s | 0-0.35/0-0.12 | 0.12/0.12 |
| Battery voltage,nominal capacity K5 | V/Ah | 24/300 | 24/240 |
| Battery weight | kg | 260 | 220 |
| Battery dimensions l/w/h | mm | 675x254x540 | 675x254x500 |
| Service weight (with battery) | kg | 1330/1340/1350/1370/1530/1560/1595 | 1240/1270/1285/1490/1520/1560/1580 |
